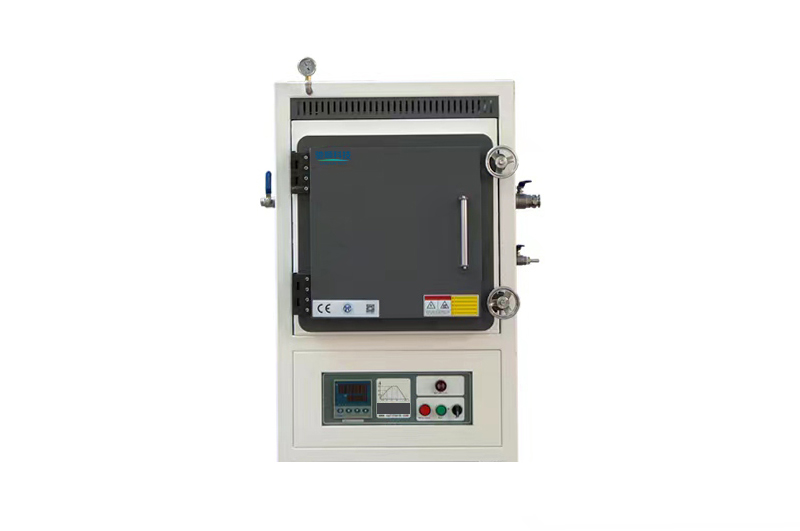

Brief description：The furnace body of the 1200℃ chamber atmosphere furnace has a flange-type sealed structure. During the heat treatment of materials, protective gases such as nitrogen, argon, and oxygen can be introduced into the heat treatment of carbon materials, metal
Model：BAF1200Manufacturer：CHISHUN TECHUpdate time：2023-05-23Visits：1602TEL：+86 25-86795086 58000618
Skype：+86 139 1299 5166
Mobile：+86 139 1299 5166
E-mail：admin@nj-keyscience.com
http://www.nj-chishun.com
Furnace shell
The shell is made of metal Q235 low-carbon steel, and the surface is electrostatically resistant and anti- corrosion.
Sturdy metal tank shell structure with low furnace surface temperature
Furnace door with flange type sealing structure and manual screw compression with side door way for easier operating
Refractory material
Multi-layer insulation design, composed of lightweight alumina ceramic fiber and other high-quality insulation board heat shielding backing, which does not contain asbestos components, low heat loss and low energy consumption
Heating system
High-quality heating element installed on both sides of the furnace safely and firmly with free heat radiation heating in the furnace chamber and energy saving and high efficiency for long service life
Heating element on both sides (left and right) for good uniformity in the furnace
Temperature Control Panel
PID with SSR control mode for precise temperature control
International standard thermocouple with long service life
The studio chamber size can be selected up to 1000L, suitable for factories production
Program Controller
Advanced controllers for complex process needs
Simple and direct operation, flexible programming
Programmable 4 curves, 8 program segments for a single curve
Over temperature and fault alarm with automatic safety protection
Vacuum Atmosphere Function
The furnace chamber has adjustable air inlet and air outlet port, which can be passed into the protective gas
High-performance rotary vane vacuum pump, which can obtain a vacuum degree of 20000pa
Optional air circuit control unit, the control unit can choose 1-3 adjustable gas float meter
Technical Parameter
|
Product Model |
Chamber Size （mm） |
Volume |
Max Temp |
Work Temp |
Voltage |
Power |
Heating Element |
Controller Accuracy |
|
BAF1200-I |
200×300×120 |
8L |
1200℃ |
1100℃ |
220V |
3KW |
HRE |
±1℃ |
|
BAF1200-II |
200×300×200 |
12L |
1100℃ |
220V |
4KW |
HRE |
±1℃ |
|
|
BAF1200-III |
250×300×250 |
18L |
1100℃ |
220V |
6KW |
HRE |
±1℃ |
|
|
BAF1200-IV |
300×500×200 |
30L |
1100℃ |
380V |
7.5KW |
HRE |
±1℃ |
|
|
BAF1400-I |
200×200×200 |
8L |
1400℃ |
1350℃ |
220V |
5KW |
SIC |
±1℃ |
|
BAF1400-II |
200×300×200 |
12L |
1350℃ |
220V |
5KW |
SIC |
±1℃ |
|
|
BAF1400-III |
250×300×250 |
18L |
1350℃ |
220V |
6KW |
SIC |
±1℃ |
|
|
BAF1400-IV |
300×400×300 |
36L |
1350℃ |
380V |
12KW |
SIC |
±1℃ |
|
|
BAF1400-V |
300×500×300 |
45L |
1350℃ |
380V |
14KW |
SIC |
±1℃ |
|
|
BAF1700-I |
200×200×200 |
8L |
1700℃ |
1600℃ |
220V |
5KW |
MoSi2 |
±1℃ |
|
BAF1700-II |
200×300×200 |
12L |
1600℃ |
220V |
6KW |
MoSi2 |
±1℃ |
|
|
BAF1700-III |
250×320×250 |
20L |
1600℃ |
380V |
7KW |
MoSi2 |
±1℃ |
|
|
BAF1700-IV |
300×400×300 |
36L |
1700℃ |
1600℃ |
380V |
13KW |
MoSi2 |
±1℃ |
|
Accessory |
1. Furnace body、2. Temperature controller、3. Power cord 3 meters、4. Thermocouple、5. Instruction manual、6. Crucible Tong、7. High temperature gloves |
|||||||
